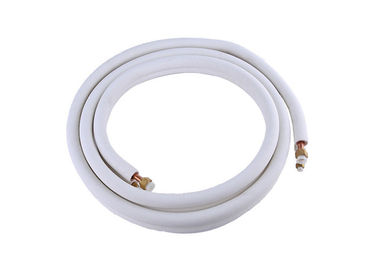

3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil

China Chongqing Xincheng Refrigeration Equipment Parts Co., Ltd. certification
China Chongqing Xincheng Refrigeration Equipment Parts Co., Ltd. certification
Good Products,Nice service.

—— Eddie Oates

This supplier always suprise me,they have everything I need,this save my time. Whats more,goods quality always great.

—— Nik.

Good quality products,nice man.

—— N&T HEALTH

I'm Online Chat Now

3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil

3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil
3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil

Large Image :  3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil

Product Details:
Place of Origin: Chingqing, China
Brand Name: TB
Certification: RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Packaging Details: nylon wrap pack then put into carton
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000000meters one month
Detailed Product Description
Copper Material: C12200 Insulation Material: PE
Color: White Or Custom Use For: Air Conditioner Or Other Insulation
Temp. Range: -40℃ - 120℃ Standard: Jis
Suit For: Both Chiller And Thermal Advantage: Easy To Instal And Labor Saving
High Light:

air conditioning copper tubing

,

soft copper refrigeration tubing

3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil



PE insulation is foamed by polyethylene water bridge,the middle layer is foamed by electronic bridge,
the other layer is made of polyethylene anti-aging and anti-untraviolet ray composite memberane,
which have high temperature resistant of 120℃.
Thermal insulated heat preservation tube material and characteristics JIS A9511:PE-C-P2 standard,use for:
1. Water,liquid,powder,granule transmission
2. Electrical wire protection tubing
3. Drain hose for construction,etc.
4. Especially for air conditioner drainage use(Heat preservation drain hose for air conditioners,
Drain hose for central air conditioning system).



3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil 0



Advantage
1- Completely conformed to the newest EU envirmontal standards SVHC.
2- High thermal stability, which is suitable for higher processing temperature(>170℃).
3-It has good mechanical property. Performance in all respects has almost kept same with pure resin.
4-It has good colurability, which can be configured to all kinds of colors.



Flame Test
Fire Resistance Custom Make Air Conditioner Use PE Insulated Copper Tube
Little white smoke come out during flame retardant process,no residue contents after buring. No smelly smoke which is conformed to environmental requirement,fit the request of RoHS and SVHC standard.



Size Range



Dimension Copper Pipe Length(mtrs)
OD x WT (mm)
1/4” -3/8” 6.35mmX 0.81mm -9.52mmx 0.81mm 10-30
1/4” -1/2” 6.35mmX 0.81mm -12.7mmx 0.81mm 10-30
1/4” -5/8” 6.35mmX 0.81mm -15.9mmx 0.81mm 10-30
3/8” -1/2” 9.52mmx 0.81mm -12.7mmx 0.81mm 10-30
3/8” -5/8” 9.52mmx 0.81mm -15.9mmx 0.81mm 10-30
3/8” -3/4” 9.52mmx 0.81mm -19.1mmx 1.14mm 10-30
1/2” -3/4” 12.7mmx 0.81mm -19.1mmx 1.14mm 10-30




Project Use



3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil 1



Our Factory



3/8” 3/4” Double Pipe Air Conditioner Use PE Insulated Refrigeration Copper Tubing Coil 2
