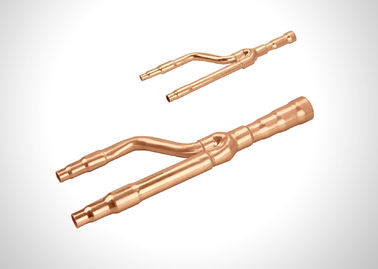

High Pressure Test Refrigeration Tubing Fittings Daikin Refnet Joint C12200 Material

Basic Infomation
Place of Origin: China
Brand Name: TB
Certification: RoHS
Model Number: TBDK33T
Minimum Order Quantity: 100sets
Packaging Details: plastic bag+carton
Delivery Time: 15-20 working days
Detail Infomation
Material: C12200 Suit: Daikin KRHJ26KT33T
Test Pressure: 5Mpa Usage: Central Air Conditioner Pipeline
Refrigent: R 22,R134a,R407C,R410a,R502 Color: Pure Copper Color

Product Description

High Pressure Test Refrigeration Copper Fittings for Central Air Conditioning



Advantages
Copper Y Joint Disperse Refnet Pipe Fitting Hitachi VRV Air Conditioning System
- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000

- Material pipe made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Well brazed and all pass pressure test.
- Long service life and recyclable.



Specifications



Daikin Disperse Pipe
TYPE "A"CALLBER(MM) "B"CALLBER(MM) "C"CALLBER(MM) "D"
KRHJ26KT22T Gas 19.05/15.88/12.7 15.88/12.7 15.88/12.7 Red copper three way Connector
Liquid 9.52/6.35 9.52/6.35 9.52/6.35
KRHJ26KT33T Gas 22.23/19.05 19.05/15.88 15.88/12.7 Red copper three way Connector
Liquid 12.7/9.52 9.52/6.35 9.52/6.35
KRHJ26KT72T Gas 31.75/28.58/25.4 25.4/19.05/15.88 19.05/15.88/12.7 Red copper three way Connector
Liquid 15.88/12.7 12.7/9.52 12.7/9.52/6.35
KRHJ26KT73T Gas 38.1/34.93/31.75 31.75/28.58/25.4 25.4/19.05/15.88 Red copper three way Connector
Liquid 19.05/15.88 19.05/15.88/12.7 15.88/12.7/9.52
KRHJ26KT75T Gas 43.45/38.1/34.93 38.1/31.75/25.4 31.75/28.58 Red copper three way Connector
Liquid 22.23/19.05 19.05/15.88/12.7 19.05
KRHJBHF22MC90 Gas 31.75/28.58 28.58/25.4/22.23/19.05 28.58/25.4/22.23/19.05 Red copper three way Connector
Liquid 19.05/15.88 12.7/9.52 12.7/9.52
KRHJBHF22MC135 Gas 38.1/31.75 31.75/31.28/28.58/25.4 28.58/25.4/22.23/19.05 Red copper three way Connector
Liquid 19.05/15.88 19.05/15.88 15.88/12.7/9.52
Gas 31.75/28.58 28.58/25.4/22.23/19.05 28.58/25.4/22.23/19.05
Liquid 19.05/15.88 12.7/9.52

15.88/12.7/9.52



Product Detail

High Pressure Test Refrigeration Tubing Fittings Daikin Refnet Joint C12200 Material

How to Insulate



High Pressure Test Refrigeration Tubing Fittings Daikin Refnet Joint C12200 Material



Installation Distance Notes



High Pressure Test Refrigeration Tubing Fittings Daikin Refnet Joint C12200 Material



Package

High Pressure Test Refrigeration Tubing Fittings Daikin Refnet Joint C12200 Material
