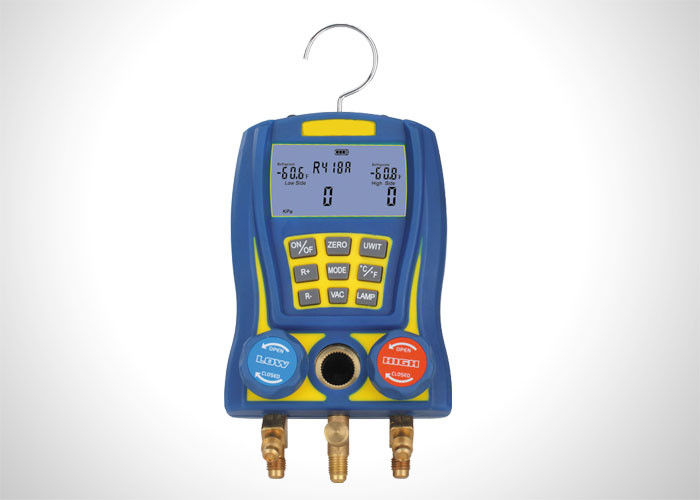

High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof

High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof
High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof

Large Image :  High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof

Product Details:
Place of Origin: Chingqing, China
Certification: CE
Model Number: 6889
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Packaging Details: Plastic Box, paper box
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 10000sets per month
Detailed Product Description
Power: DC 6V Battery Life: 30 Hours
Pressure Units: KPa,INHG,KgF/cm2,PSI,Bar Connection: 1/4" SAE Brass
Refrigent Suit: R22 R134A R404A R410A Charging Hose: 3pcs
Vacuum Measuring Range: -101 Kpa~0Kpa Refrigent Suit For: CFC HCFC HFC
High Light:

hvac manifold gauge set

,

air conditioning manifold gauge set

High Accuracy Super Shockproof Digital Air Conditioner Manifold Gauge Set



Features


Switch between refrigerant pressure and vacuum.
Programmed with 88 refrigerant pressure and saturated temperature data taken from the latest NIST database.
Measuring Vacuum and shown in percentage.
Low battery indicator.Long battery life of 30 hours.
Show actual temperature,sub cooling,superheat,vacuum.
High resolution LCD with background lamp.
Low voltage DC 6V design.
2 way aluminum alloy manifold with diaphragm design.

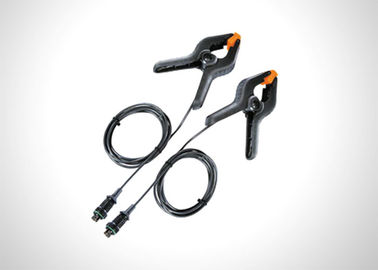

Sensors: 2 pressure sensors and 2 temperature sensors.
SPECIFICATION
Pressure units :KPA,INHG,KgF/cm2,PSI,Bar
Vacuum units:Torr,mmHg,Micron,%
Power:1.5V AA X 4=6V
Pressure measuring:actual pressure.
Temperature units:℉,℃
Measuring range: Vacuum:-101 Kpa~0Kpa
Proof prsddure:0 MPa~6 MPa
Refrigerant pressure:0 MPa~4 MPa
Sensor resolution: 1 KPa
Sensor accuracy:±0.5%
Overload limit: 100Bar,10Mpa
Operating temperature:-20℃~+60℃
Battery life: 30 hours
Sensor temperature range:-50C-150C(-58F-302F)
Temperature accuracy:<50C(+/-0.1C),>50-100C(+/0.2C),>100C(+/-1C)
Auto-off:15 min with disabling capability.



Manifold Gauge Compose



High Accuracy R134A Refrigerant Gauge Set / Digital Ac Manifold Gauges Shockproof 0



Technical Data



Item No. Size of hose Description
6889-L 60″(150cm) 2Valve Digital manifolds + 3Pcs of charge hose.Working pressure,800PSI,Burst 4000PSI + 5Pcs of 1.5VBattery + 2Pcs of temper ature sensor+ 1Pcs of suitcase.
