Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1.5CFM Rotary Vane Vacuum Pump | Structure: | Single Stage Pump |
|---|---|---|---|
| Usage: | Air Vacuum | Power: | 1/4Hp |
| Electric: | 220V/50Hz Or 110V/60Hz | Ultimate Vacuum: | 5pa |
| Flow Rate: | 1.5CFM | Number Of Stage: | 1 |
| High Light: | 1.5CFM Refrigeration Vacuum Pump,Rotary Vane Refrigeration Vacuum Pump,5Pa Single Stage Vacuum Pump |
||

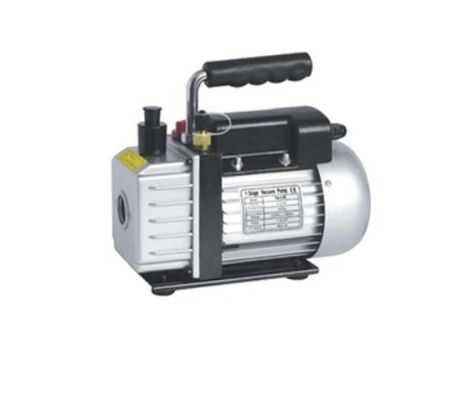

Single Stage 1.5CFM Rotary Vane Vacuum Pump
Technical Data
| Item NO. | VP115 | |
| Flow Rate | 50Hz | 1.5CFM |
| 42 L/min | ||
| 60Hz | 1.8CFM | |
| 50 L/min | ||
| Ultimate vacuum | 5Pa | |
| 100 microns | ||
| Power | 1/4HP | |
| Lnket Port | 1/4"Flare | |
| Oil Capacity | 280ml | |
| Dimensions(mm) | 260x122x220 | |
| Weight | 4.6kg | |
Feature
1.Two gas ballasting design,more convenient for different technology to needs of steam dischargement.
3.Automatic preventing returning oil valve design,more reliable to protect vacuum system free of the oil polluted under the halting.
4.Internally installed the gear pump and constant oil supply pressure mechanism for forced feed oil.Operating steadily and reliably under the high suction intesity of pressure.
5.A small number of the parts,good repeatability,maintaining easily.
6.Forced lubrication.
7.Integrated pump body.
Switch
Vacuum Oil Sight Glass
Copper Wire Core- Long Life
Plug and Valtage Can Choose
Other Option
| Single Stage | ||||||||
| Item NO. | VP115 | VP125 | VP135 | VP145 | VP160 | VP180 | VP1100 | |
| Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42 L/min | 70 L/min | 100 L/min | 128 L/min | 170 L/min | 226 L/min | 283 L/min | ||
| 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50 L/min | 84 L/min | 114 L/min | 142 L/min | 198 L/min | 254 L/min | 340 L/min | ||
| Ultimate vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | |
| 100 microns | 100 microns | 100 microns | 100 microns | 100 microns | 100 microns | 100 microns | ||
| Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
| Lnket Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8"Flare | 1/4"&3/8"Flare | 1/4"&3/8"Flare | |
| Oil Capacity | 280ml | 240ml | 350ml | 350ml | 450ml | 600ml | 750ml | |
| Dimensions(mm) | 260x122x220 | 260x122x220 | 270x122x220 | 270x122x220 | 320x134x235 | 370x140x250 | 390x140x250 | |
| Weight | 4.6kg | 5kg | 5.5kg | 6kg | 6kg | 14kg | 14.5kg | |
| Duel Stage | ||||||||
| Item NO. | VP215 | VP225 | VP235 | VP245 | VP260 | VP280 | VP2100 | |
| Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42 L/min | 70 L/min | 100 L/min | 128 L/min | 170 L/min | 226 L/min | 283 L/min | ||
| 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50 L/min | 84 L/min | 114 L/min | 142 L/min | 198 L/min | 254 L/min | 340 L/min | ||
| Ultimate vacuum | 3x10Pa | 3x10Pa | 3x10Pa | 3x10Pa | 3x10Pa | 3x10Pa | 3x10Pa | |
| 20 microns | 20 microns | 20 microns | 20 microns | 20 microns | 20 microns | 20 microns | ||
| Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | |
| Lnket Port | 1/4"Flare | 1/4"Flare |
1/4"&3/8" Flare |
1/4"&3/8" Flare |
1/4"&3/8" Flare |
1/4"&3/8" Flare |
1/4"&3/8" Flare |
|
| Oil Capacity | 180ml | 280ml | 350ml | 340ml | 600ml | 600ml | 700ml | |
| Dimensions(mm) | 260x122x220 | 270x122x220 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | |
| Weight | 6kg | 7kg | 10.5kg | 11kg | 15kg | 15.5kg | 16kg | |
