Product Details:
Payment & Shipping Terms:
|
| Material: | C1220 SF-Cu C12000 | Standard: | JISH3300:1997,GB/T17791-2007 |
|---|---|---|---|
| OD: | 3/16"-1 1/8" | Wall Thickness: | 0.28-2mm |
| Length: | 15-50m | Usage: | AC/ Refrigeration/ Water And Oil Supply |
| Highlight: | refrigeration copper pipe,soft copper refrigeration tubing |
||

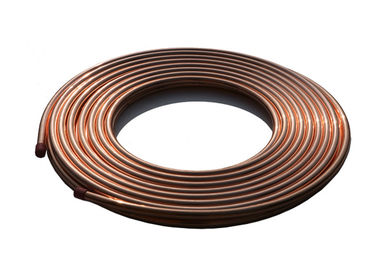

Soft Type Pancake Coil Air Conditioner Refrigeration Copper Tubing
It is used for home and commercial using, central air conditioners, refrigerators, chiller plants, compressors units, generator sets, condensers used in thermal and nuclear powder plants, heat exchangers of gas andiron fireplace grates, and so on. Straight copper tube can be divided into straight plain tube and straight grooved tube.
Technical Data
| Regular Spec. of Copper Coil (Custom Accept) | |||
| Outer Diameter(Inch) | Outer Diameter(mm) | Thickness(mm) | Coil Length |
| 3/16" | 4.76 | 0.35-0.90 | 15-50m |
| 1/4" | 6.35 | 0.4-1.10 | |
| 5/16" | 7.94 | 0.4-1.20 | |
| 3/8" | 9.52 | 0.4-1.20 | |
| 1/2" | 12.7 | 0.45-1.20 | |
| 5/8" | 15.88 | 0.50-1.20 | |
| 3/4" | 19.05 | 0.60-1.20 | |
| 7/8" | 22.22 | 0.90-1.20 | |
Advantages
- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
- Can be used for liquid fed applications such as air conditioning, ice makers, humidifiers, and refrigeration systems. Also used for oil lines for heating.
