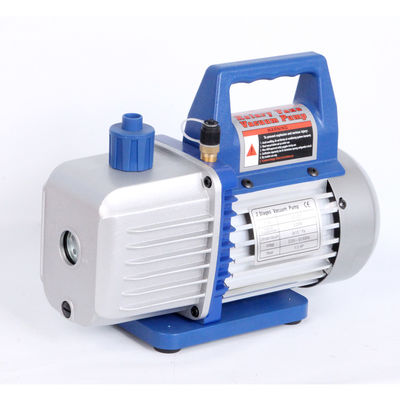

Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump

Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump
Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump

Large Image :  Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump

Product Details:
Place of Origin: Chingqing, China
Brand Name: XC
Certification: CE
Model Number: VP215
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 10000 sets/month
Detailed Product Description
Name: 2 Stage 1.5CFM 1 / 4 Hp Portable Mini Air Vacuum Pump Flow Rate: 50Hz 1.5CFM 60Hz 1.8CFM
Power: 1/4Hp Electric: 220V/50Hz Or 110V/60Hz
Ultimate Vacuum: 0.3pa Number Of Stage: 2
Inlet Port: 1/4" Usage: Air Vacuum
High Light:

0.3pa 1/4Hp Air Vacuum Pump

,

1.5CFM Air Vacuum Pump

,

Rotary Vane Air Vacuum Pump

2 Stage 1.5CFM 1 / 4 Hp Portable Mini Air Vacuum Pump



What is a rotary vane pump used for?



Rotary Vane pumps are commonly used as high-pressure hydraulic pumps and in automobiles, including supercharging, power-steering, air conditioning and automatic-transmission pumps. Pumps for mid-range pressures include applications such as carbonators for fountain soft-drink dispensers and espresso coffee machines.



Technical Data



Item NO. VP215
Flow Rate 50Hz 1.5CFM
42 L/min
60Hz 1.8CFM
50 L/min
Ultimate vacuum   0.3Pa
  25 microns
Power 1/4HP
Lnket Port 1/4"Flare
Oil Capacity 280ml
Dimensions(mm) 260x122x220
Weight 4.6kg


Detail



Vacuum Oil Sight Glass



Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump 0



Copper Wire Core- Long Life





Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump 1



Plug and Valtage Can Choose



Rotary Vane 2 Stage 1.5CFM 1/4Hp Air Vacuum Pump 2



Other Option



Single Stage
Item NO. VP115 VP125 VP135 VP145 VP160 VP180 VP1100
Flow Rate 50Hz 1.5CFM 2.5CFM 3.5CFM 4.5CFM 6CFM 8CFM 10CFM
42 L/min 70 L/min 100 L/min 128 L/min 170 L/min 226 L/min 283 L/min
60Hz 1.8CFM 3CFM 4CFM 5CFM 7CFM 9CFM 12CFM
50 L/min 84 L/min 114 L/min 142 L/min 198 L/min 254 L/min 340 L/min
Ultimate vacuum   5Pa 5Pa 5Pa 5Pa 5Pa 5Pa 5Pa
  100 microns 100 microns 100 microns 100 microns 100 microns 100 microns 100 microns
Power 1/4HP 1/4HP 1/3HP 1/3HP 1/2HP 3/4HP 1HP
Lnket Port 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare 1/4"&3/8"Flare 1/4"&3/8"Flare 1/4"&3/8"Flare
Oil Capacity 280ml 240ml 350ml 350ml 450ml 600ml 750ml
Dimensions(mm) 260x122x220 260x122x220 270x122x220 270x122x220 320x134x235 370x140x250 390x140x250
Weight 4.6kg 5kg 5.5kg 6kg 6kg 14kg 14.5kg



Duel Stage
Item NO. VP215 VP225 VP235 VP245 VP260 VP280 VP2100
Flow Rate 50Hz 1.5CFM 2.5CFM 3.5CFM 4.5CFM 6CFM 8CFM 10CFM
42 L/min 70 L/min 100 L/min 128 L/min 170 L/min 226 L/min 283 L/min
60Hz 1.8CFM 3CFM 4CFM 5CFM 7CFM 9CFM 12CFM
50 L/min 84 L/min 114 L/min 142 L/min 198 L/min 254 L/min 340 L/min
Ultimate vacuum   3x10Pa 3x10Pa 3x10Pa 3x10Pa 3x10Pa 3x10Pa 3x10Pa
  20 microns 20 microns 20 microns 20 microns 20 microns 20 microns 20 microns
Power   1/4HP 1/3HP 1/3HP 1/2HP 3/4HP 1HP 1HP
Lnket Port   1/4"Flare 1/4"Flare

1/4"&3/8"

Flare

1/4"&3/8"

Flare

1/4"&3/8"

Flare

1/4"&3/8"

Flare

1/4"&3/8"

Flare

Oil Capacity   180ml 280ml 350ml 340ml 600ml 600ml 700ml
Dimensions(mm)   260x122x220 270x122x220 320x134x232 320x134x232 370x140x250 370x140x250 390x140x250
Weight   6kg 7kg 10.5kg 11kg 15kg 15.5kg 16kg
