Product Details:
Payment & Shipping Terms:
|
| Type: | Ambient Crossflow Model With Hydro Heating | Noise: | Low Noise Design |
|---|---|---|---|
| Usage: | Industrial And Commercial Area | Case: | Power Coated Steel |
| Control: | Remote Control And Switch Control | Blower: | Plastic |
| High Light: | commercial door air curtain,overhead door air curtain |
||

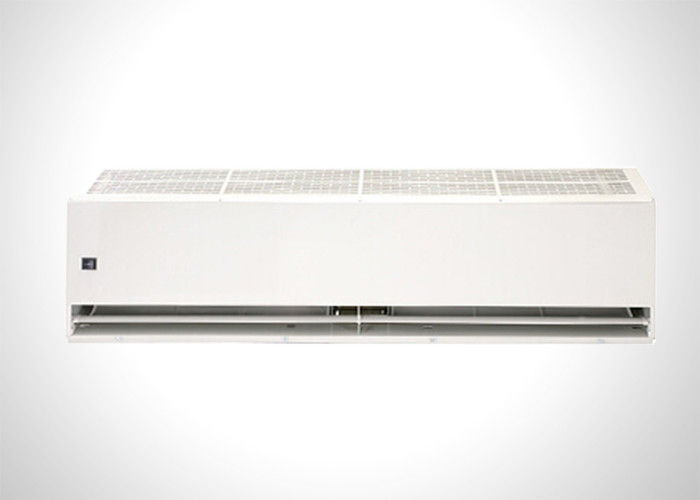

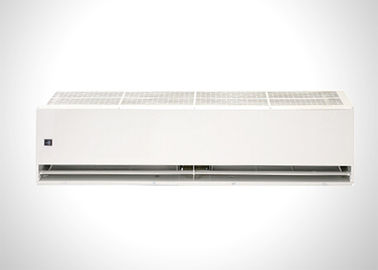

Industrial Use High Efficient Hydro-Heating Air Curtain Wind Speed Control
Feature
• Cross flow with Hydro-heating model
• Classic design suitable for most application
• Powder coded steel case with aluminium blowers
• Hydro-heating system ensure lower operation cost
• Remote control and door switch are optional parts with additional cost
Technical Data
| Model | Voltage(v)/Frequancy(Hz) | Motor Input Power(W) | Max Air Velocity(M/S) | Noise(dB) | Air Volumn(m³/h) | Net Weight(Kg) | Unit Size(mm) | Carton Size(mm) | ||||
| Hi | Low | Hi | Low | Hi | Low | Hi | Low | |||||
| RM-3010-S-W | 220-240V 50Hz | 350 | 250 | 11 | 8.5 | 55 | 50 | 1600 | 1200 | 30 | 1000x302x358 | 1050x352x420 |
| RM-3015-S-W | 450 | 320 | 57 | 53 | 2400 | 1800 | 40 | 1450x302x358 | 1500x352x420 | |||
| RM-3020-S-W | 540 | 380 | 59 | 55 | 3200 | 2400 | 57 | 2010x302x358 | 2060x352x420 | |||
