Product Details:
Payment & Shipping Terms:
|
| Material: | C1220 SF-Cu C12000 | Standard: | JISH3300:1997,GB/T17791-2007 |
|---|---|---|---|
| OD: | 3/16"-1 1/8" | Wall Thickness: | 0.28-2mm |
| Length: | 15-50m | Usage: | AC/ Refrigeration/ Water And Oil Supply |
| High Light: | air conditioning copper tubing,refrigeration copper pipe |
||

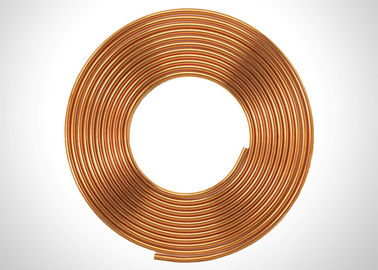

3/4" Soft Type Pancake Coil Air Conditioner Refrigeration Copper Tubing
Technical Data
| Regular Spec. of Copper Coil (Custom Accept) | |||
| Outer Diameter(Inch) | Outer Diameter(mm) | Thickness(mm) | Coil Length |
| 3/16" | 4.76 | 0.35-0.90 | 15-50m |
| 1/4" | 6.35 | 0.4-1.10 | |
| 5/16" | 7.94 | 0.4-1.20 | |
| 3/8" | 9.52 | 0.4-1.20 | |
| 1/2" | 12.7 | 0.45-1.20 | |
| 5/8" | 15.88 | 0.50-1.20 | |
| 3/4" | 19.05 | 0.60-1.20 | |
| 7/8" | 22.22 | 0.90-1.20 | |
Advantages
- Standard: JISH3300:1997,GB/T17791-2007,ASTM B280
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
- Can be used for liquid fed applications such as air conditioning, ice makers, humidifiers, and refrigeration systems. Also used for oil lines for heating.
Packing
Detail
