3.5CFM 1/3Hp 1 Stage HVAC Air Vacuum Pump

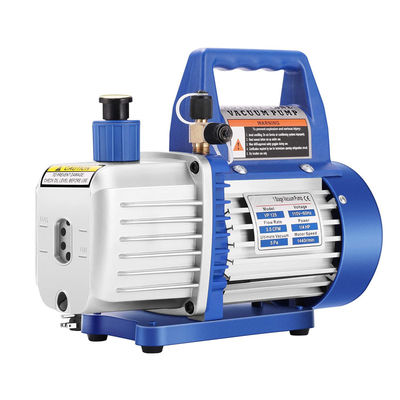

Large Image : 3.5CFM 1/3Hp 1 Stage HVAC Air Vacuum Pump

Product Details:

Place of Origin:	Chingqing, China
Brand Name:	XC
Certification:	CE
Model Number:	VP135

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton
Delivery Time:	7days
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets/month

Contact Now

Detailed Product Description

Name:	3.5CFM 1 / 3 Hp 1 Stage HVAC Air Vacuum Pump	Usage:	Air Vacuum
Flow Rate:	50Hz 3.5CFM 60Hz 4CFM	Power:	1/3Hp
Electric:	220V/50Hz Or 110V/60Hz	Ultimate Vacuum:	5pa
Number Of Stage:	1	Inlet Port:	1/4"
High Light:	3.5CFM HVAC Air Vacuum Pump , 1/3Hp HVAC Air Vacuum Pump , 350ml Oil Air Vacuum Pump

3.5CFM 1 / 3 Hp 1 Stage HVAC Air Vacuum Pump

The more air a pump moves, the faster it can reach an acceptable vacuum. A smaller pump takes more time to evacuate a system than one that’s the correct size for the job.

Technical Data

Item NO.		VP135
Flow Rate	50Hz	3.5CFM
		100 L/min
	60Hz	4CFM
		114 L/min
Ultimate vacuum		5Pa
		100 microns
Power		1/3HP
Lnket Port		1/4"Flare
Oil Capacity		350ml
Dimensions(mm)		270x122x220
Weight		5.5kg

Detail

3.5CFM 1/3Hp 1 Stage HVAC Air Vacuum Pump 0

3.5CFM 1/3Hp 1 Stage HVAC Air Vacuum Pump 1

Plug and Valtage Can Choose

3.5CFM 1/3Hp 1 Stage HVAC Air Vacuum Pump 2

Other Option

Single Stage
Item NO.		VP115	VP125	VP135	VP145	VP160	VP180	VP1100
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
	50Hz	42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
	60Hz	50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		5Pa	5Pa	5Pa	5Pa	5Pa	5Pa	5Pa
Ultimate vacuum		100 microns	100 microns	100 microns	100 microns	100 microns	100 microns	100 microns
Power		1/4HP	1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP
Lnket Port		1/4"Flare	1/4"Flare	1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		280ml	240ml	350ml	350ml	450ml	600ml	750ml
Dimensions(mm)		260x122x220	260x122x220	270x122x220	270x122x220	320x134x235	370x140x250	390x140x250
Weight		4.6kg	5kg	5.5kg	6kg	6kg	14kg	14.5kg

Duel Stage
Item NO.		VP215	VP225	VP235	VP245	VP260	VP280	VP2100
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
	50Hz	42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
	60Hz	50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa
Ultimate vacuum		20 microns	20 microns	20 microns	20 microns	20 microns	20 microns	20 microns
Power		1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Lnket Port		1/4"Flare	1/4"Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare
Oil Capacity		180ml	280ml	350ml	340ml	600ml	600ml	700ml
Dimensions(mm)		260x122x220	270x122x220	320x134x232	320x134x232	370x140x250	370x140x250	390x140x250
Weight		6kg	7kg	10.5kg	11kg	15kg	15.5kg	16kg
