226L/Min 8CFM 3/4Hp 1 Stage Air Operated Vacuum Pump

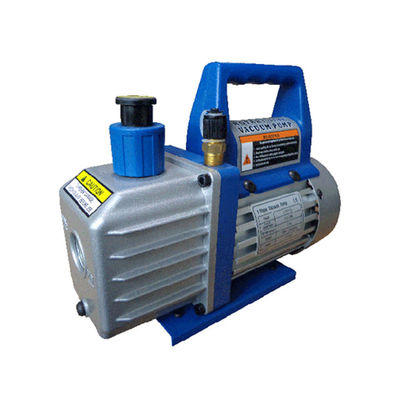

Large Image : 226L/Min 8CFM 3/4Hp 1 Stage Air Operated Vacuum Pump

Product Details:

Place of Origin:	Chingqing, China
Brand Name:	XC
Certification:	CE
Model Number:	VP180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton
Delivery Time:	7days
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets/month

Contact Now

Detailed Product Description

Name:	8CFM 3 / 4 Hp 1 Stage Air Vacuum Pump For AC	Flow Rate:	50Hz 4.5CFM 60Hz 5CFM
Power:	3/4Hp	Electric:	220V/50Hz Or 110V/60Hz
Ultimate Vacuum:	5pa	Number Of Stage:	1
Inlet Port:	1/4" 3/8"	Usage:	Air Vacuum
High Light:	8CFM Air Operated Vacuum Pump , 220V Air Operated Vacuum Pump , 226L/Min Air Operated Vacuum Pump

8CFM 3 / 4 Hp 1 Stage Air Vacuum Pump for AC

What is AC vacuum pump used for?
Air conditioning vacuum pump is used to remove unwanted air and water vapor from the air conditioning system when it is under service.

When the air conditioner needs to be repaired, the first step taken is usually to recover the refrigerant from the system for reuse later.

Technical Data

Item NO.		VP180
Flow Rate	50Hz	8CFM
		226 L/min
	60Hz	9CFM
		254 L/min
Ultimate vacuum		5Pa
		100 microns
Power		3/4HP
Lnket Port		1/4" 3/8" Flare
Oil Capacity		600ml
Dimensions(mm)		370x140x250
Weight		14kg

Detail

226L/Min 8CFM 3/4Hp 1 Stage Air Operated Vacuum Pump 0

226L/Min 8CFM 3/4Hp 1 Stage Air Operated Vacuum Pump 1

Other Option

Single Stage
Item NO.		VP115	VP125	VP135	VP145	VP160	VP180	VP1100
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
	50Hz	42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
	60Hz	50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		5Pa	5Pa	5Pa	5Pa	5Pa	5Pa	5Pa
Ultimate vacuum		100 microns	100 microns	100 microns	100 microns	100 microns	100 microns	100 microns
Power		1/4HP	1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP
Lnket Port		1/4"Flare	1/4"Flare	1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		280ml	240ml	350ml	350ml	450ml	600ml	750ml
Dimensions(mm)		260x122x220	260x122x220	270x122x220	270x122x220	320x134x235	370x140x250	390x140x250
Weight		4.6kg	5kg	5.5kg	6kg	6kg	14kg	14.5kg

Duel Stage
Item NO.		VP215	VP225	VP235	VP245	VP260	VP280	VP2100
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
	50Hz	42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
	60Hz	50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa	3x10Pa
Ultimate vacuum		20 microns	20 microns	20 microns	20 microns	20 microns	20 microns	20 microns
Power		1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Lnket Port		1/4"Flare	1/4"Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare	1/4"&3/8" Flare
Oil Capacity		180ml	280ml	350ml	340ml	600ml	600ml	700ml
Dimensions(mm)		260x122x220	270x122x220	320x134x232	320x134x232	370x140x250	370x140x250	390x140x250
Weight		6kg	7kg	10.5kg	11kg	15kg	15.5kg	16kg
